All around clean

Powder handling line for the BASF Catalysts Germany GmbH


Customer BASF Catalysts Germany GmbH Site Nienburg (on the Weser) Industry Energy & environment (exhaust-gas aftertreatment) Website OAS business segments Plant Engineering, Weighing Technology

As one of the leading vendors in the field of automotive exhaust-gas aftertreatment, the company BASF Catalysts Germany GmbH with its catalytic converters and particulate filters for motor vehicles globally provides for drastic reduction of pollutant emissions and, consequently, directly contributes to the climate protection worldwide.

Pulverhandling Anlage für BASF Catalysts Germany GmbH
Pulverhandling Anlage für BASF Catalysts Germany GmbH
Pulverhandling Anlage für BASF Catalysts Germany GmbH
Pulverhandling Anlage für BASF Catalysts Germany GmbH
Pulverhandling Anlage für BASF Catalysts Germany GmbH

Our demand: BASF wants to be the globally leading chemicals company for our customers. One important element in this context are state-of-the-art production lines. With our new power handling line by OAS, we are now able to make or production process even more precise and efficient.

Peter Sigmund
Project Engineer, BASF


To ensure that already the manufacture of the catalytic converters runs clean and free of contamination, BASF was in need of a new powder handling line in the plant in Nienburg (on the Weser) designed to thermally treat mineral compounds. OAS AG was entrusted with planning and construction of this line. The objective was to convey and weigh many different solid and liquid raw materials in the production process in a way that the line is not subject to superfluous fouling. Since the line was installed in an existing building, planning also included the adjustment to the limited building area and height, which turned out to be a real challenge.

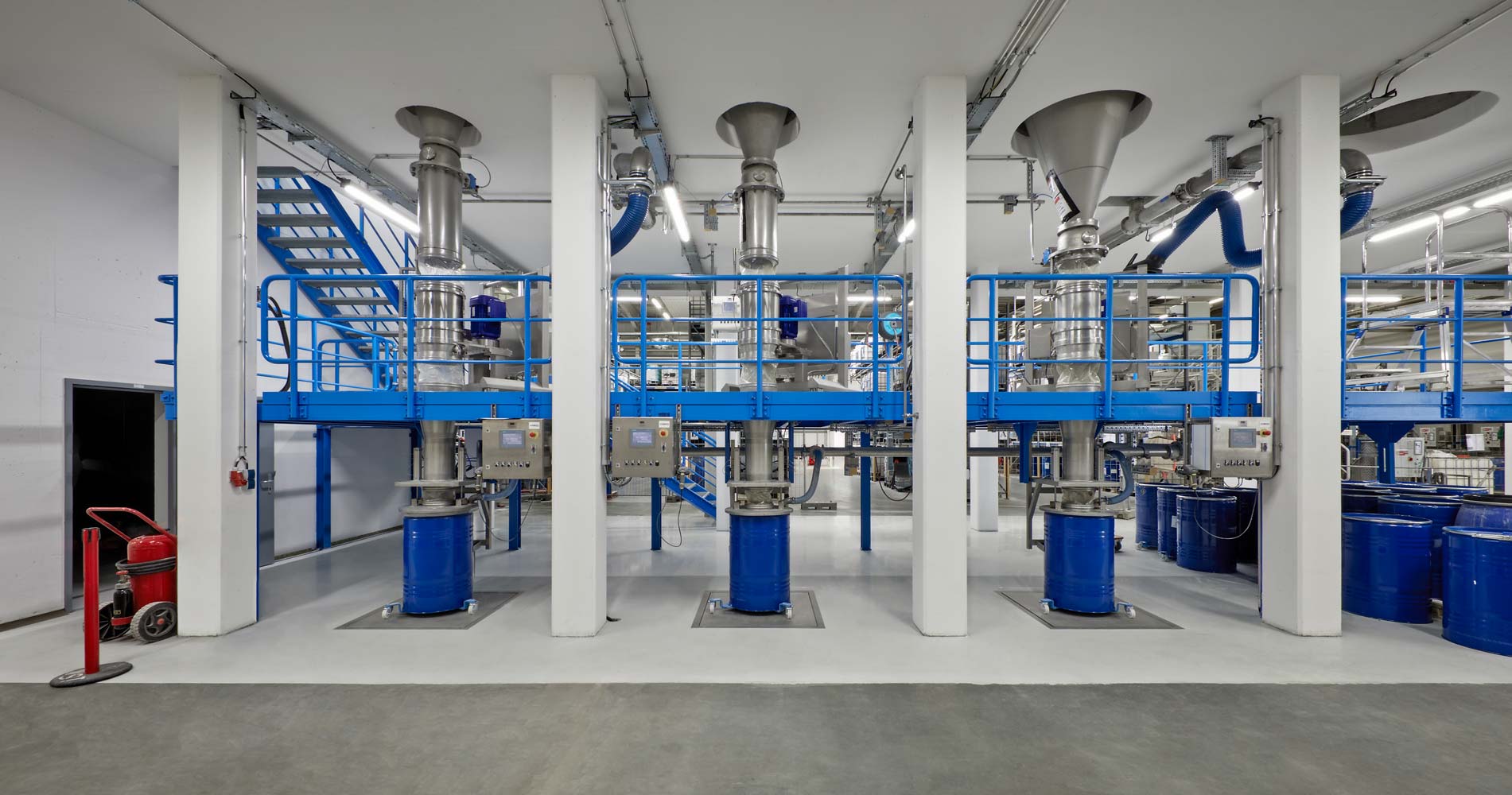

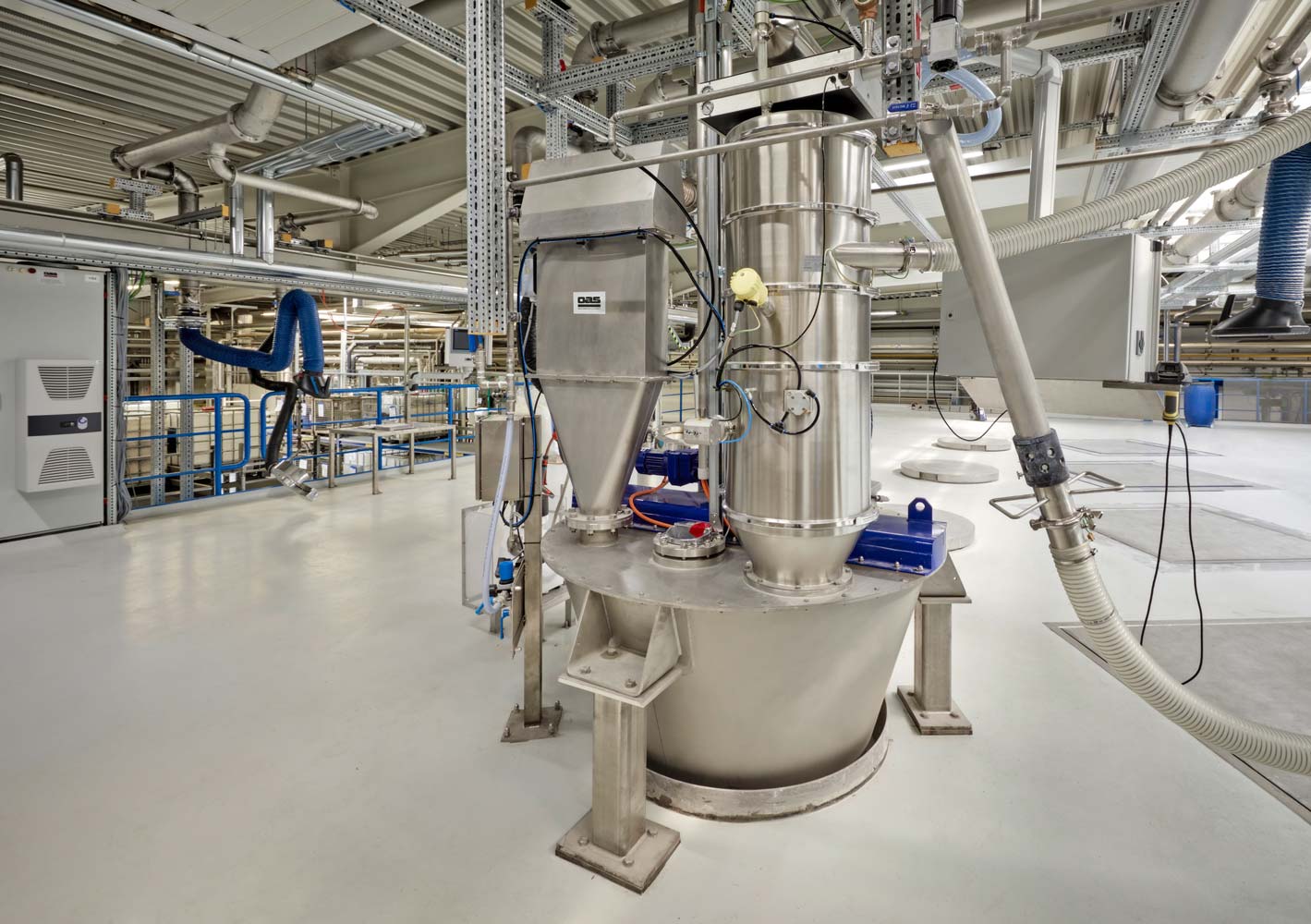

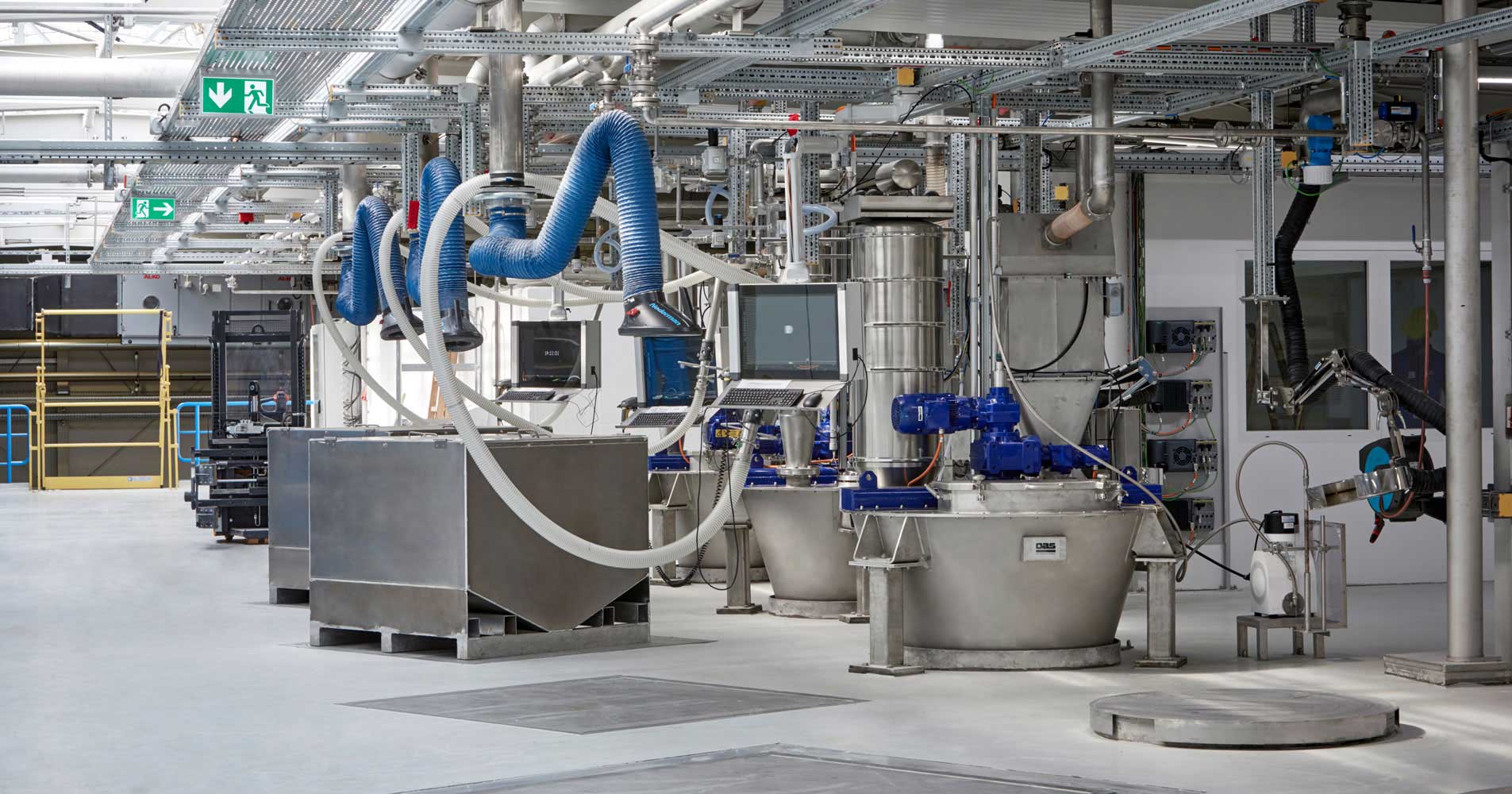

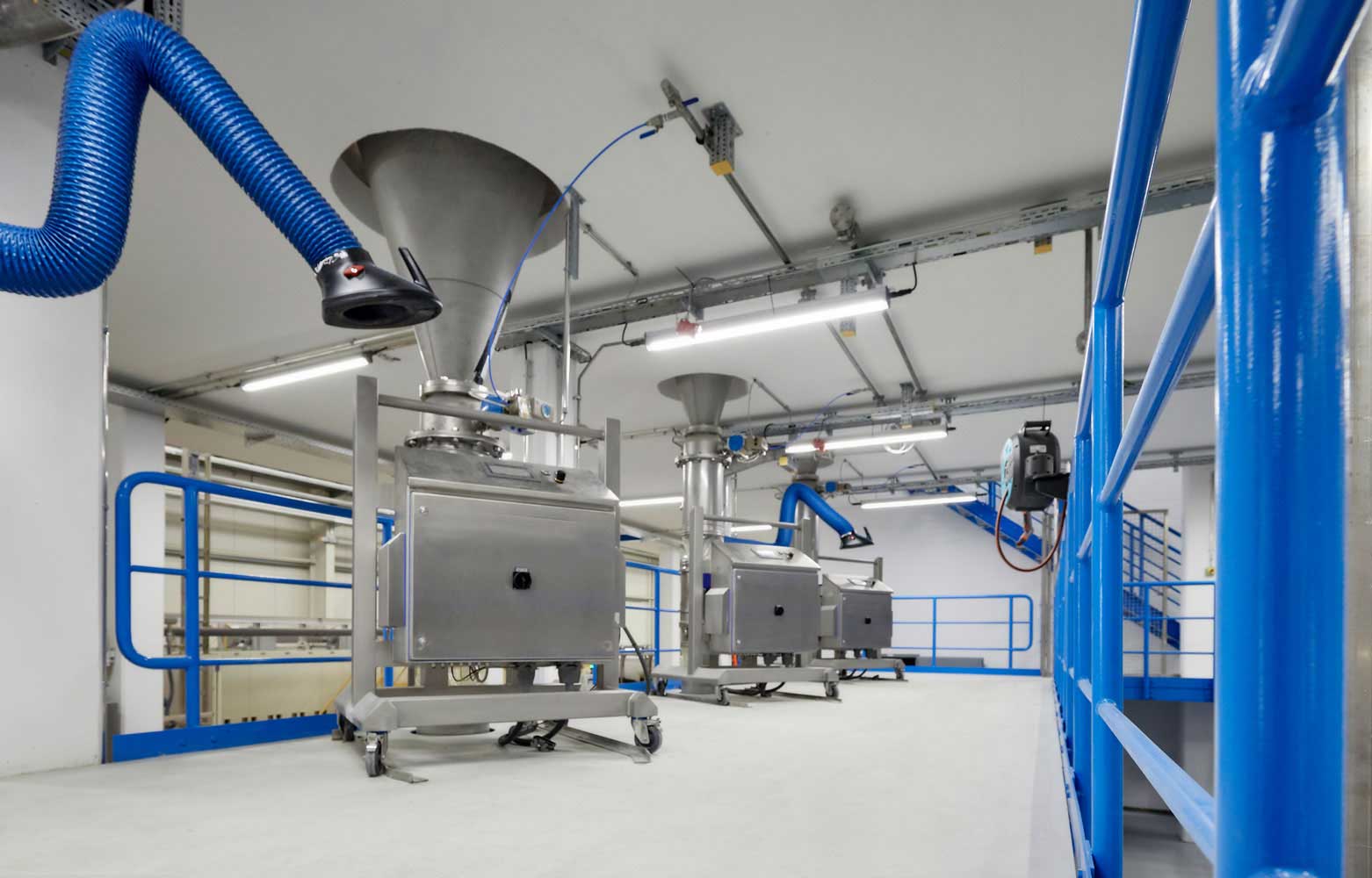

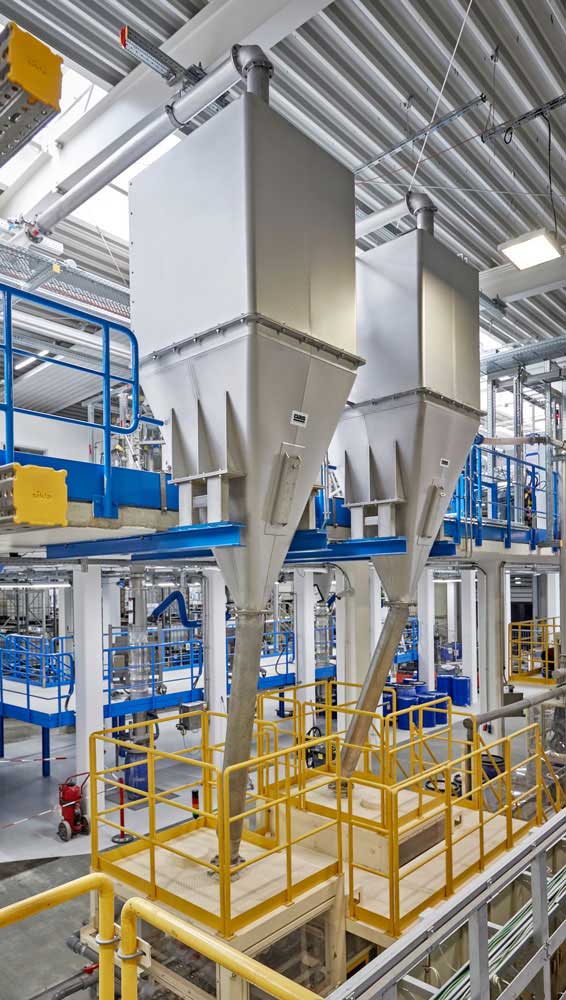

By means of vacuum conveyors, pneumatic diaphragm pumps, and platform weighers, the new powder handling line gravimetrically doses the solid and liquid raw materials into the different mixers. To this end, a set of floor scales and a vacuum conveyor especially designed for the raw materials used were installed for each of the three newly built mixer lines in powder feeding. After mixing, sifters weigh the powders and fill them into transport containers to be transported to the thermal treatment line.

Now, the resource handling during the manufacture of the catalytic converters for motor vehicles does not only emit little dust and is free of leakages, but the entire system can also be cleaned easily. All around clean!

The customer's benefits

  • low-dust powder handling
  • simple dosing of liquid media without leakage
  • easy cleaning of the technology used
  • full flexibility as the pneumatic conveying equipment is designed to meet and is adapted to the specified cycle times

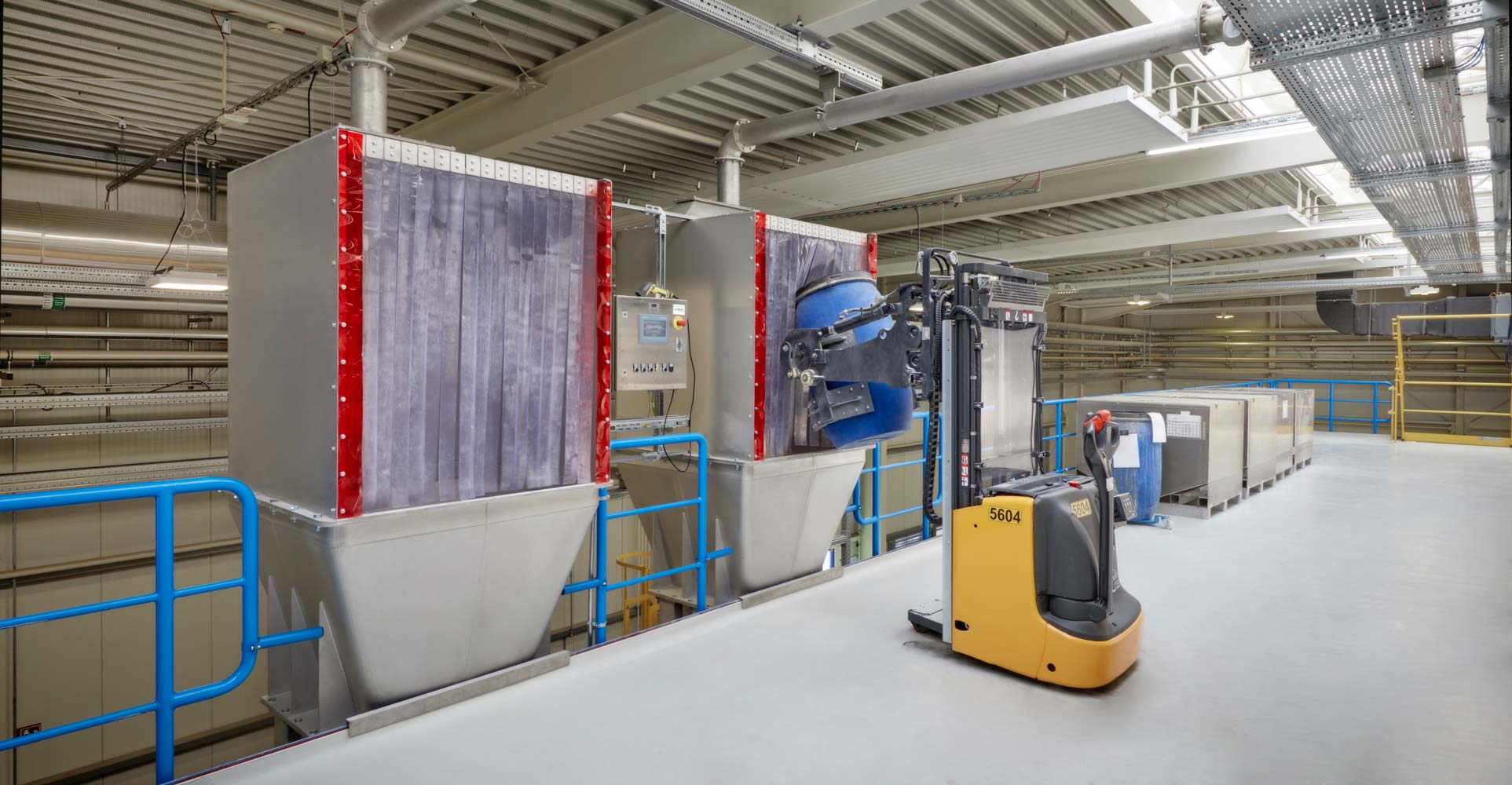

  • platform weighers for filling and two docking stations for drums delivered to subsequent processes
  • appropriate design of electrical technology

Project details




200 - 800 l




600, 800 und 1800 l/h


approx. 400 m2


approx. 45 m2
